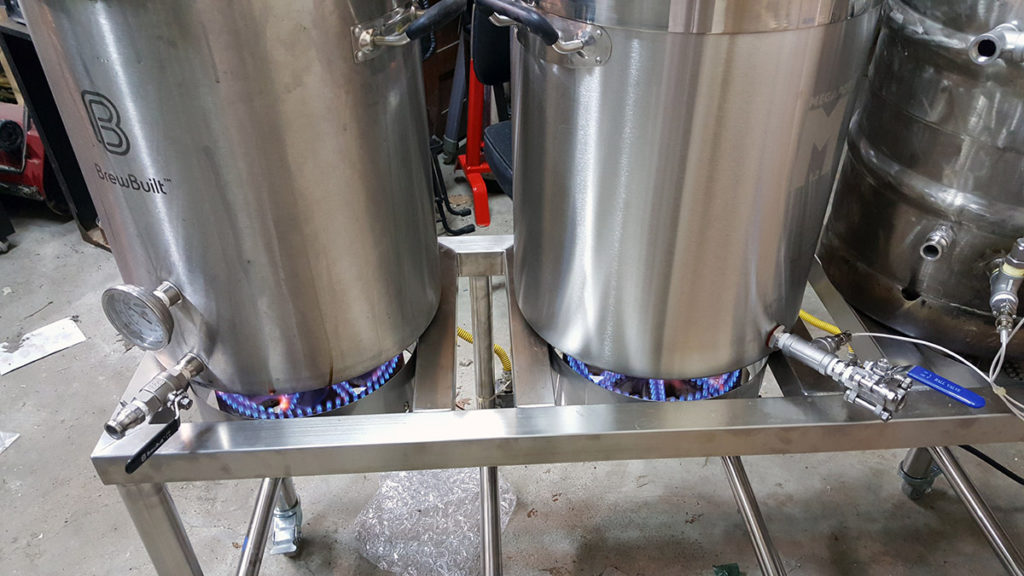

I have been brewing indoors since January. The indoor system is really convenient but the batch size is limited to 2.5 gallons. A typical homebrew batch size is 5 gallons. My usual system can do 5 to 10 gallons and I have missed having that capacity. I tore it all down to upgrade and update it and never got around to completing the project. I made massive progress today, though. I installed the temperature sensors on the MLT, HLT, and heat exchanger and wired them all to the controller. I got all three pilot/thermocouple assemblies mounted, made new pilot gas lines for all three, and wired them all to the controller. I did the first test burns to test the pilots, thermocouples, and burners and all looks good. Just need to mount the pumps, make up new silicon hoses, add the autosparge and whirlpool fittings, and rig the plate chiller. You can see the test burn here: http://johnrcrilly.com/20160723_214848.mp4 (yes, I need to crank the gas down and the air up!)

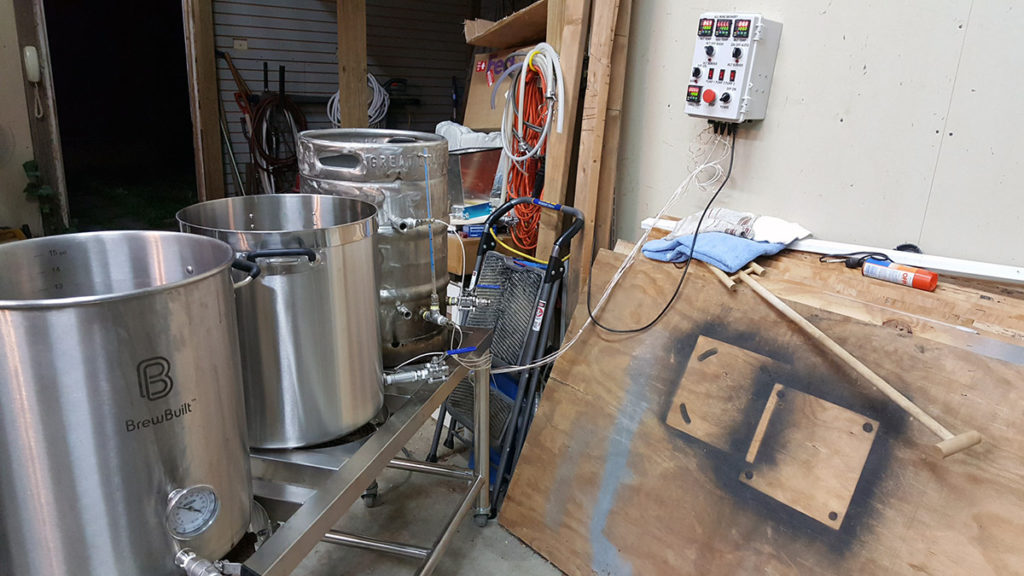

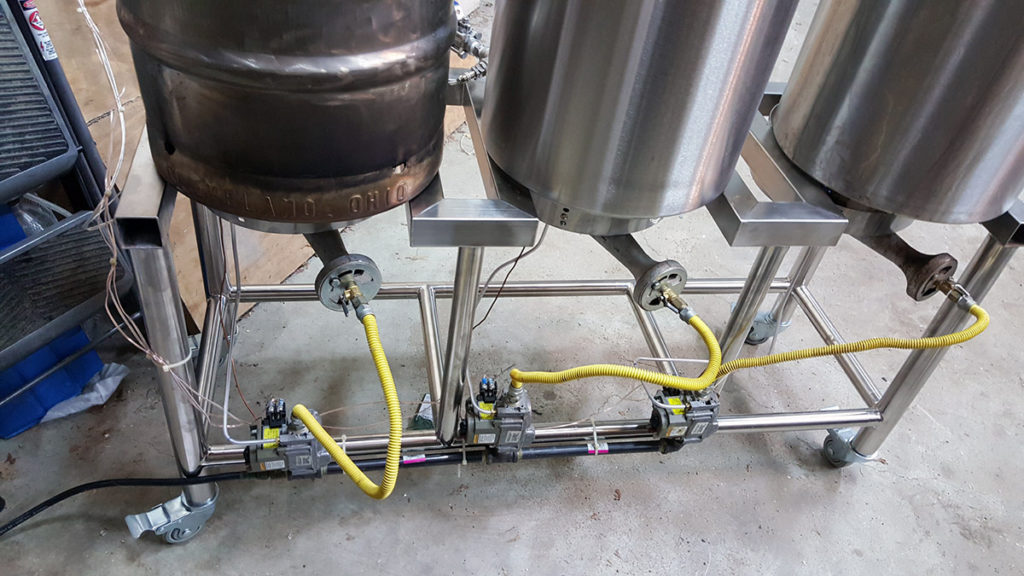

The rig consists of three 10″ banjo burners running on low pressure propane and controlled by PIDs driving Honeywell furnace valves. There is a heat exchanger in the hot liquor tank so I can operate as a HERMS (heat exchanger recirculating mash system). There is a controlled burner on the mash/lauter tun so I also have the option of running it as a RIMS (recirculating infusion mash system). The kettles are 15 gallons so capacity is 10 gallons max.
